A month ago we introduced the latest version of the Google document editor. The new editor comes with features like a ruler, tabs stops, and floating images. Those features might seem pretty basic, but they’re nearly impossible to support in a regular online text editor. This post unwraps some of the core technical changes with the new editor to make this new functionality possible.
The old Google documents
As background, most online text editors (including the old Google documents) use an editable HTML element, which means the application tells the browser to make a certain string of text editable, and the browser takes care of letting the user edit that text. So when you type in the old Google document editor, the browser inserts the characters you type into the page’s HTML. Likewise, when you bold a word, the browser changes the HTML so that the word displays as bold.
Relying on the browser like this has several advantages:
- Easy implementation -- Browsers know when a user triple clicks, they want to select an entire paragraph. The application doesn’t need to think about these basic text behaviors.
- Easy to make it fast -- The browser (not the app) handles the most computationally intensive task: text layout. Since layout is a core component of browser functionality, you can trust that layout performance has already been heavily optimized.
The new Google documents
A new editing surface

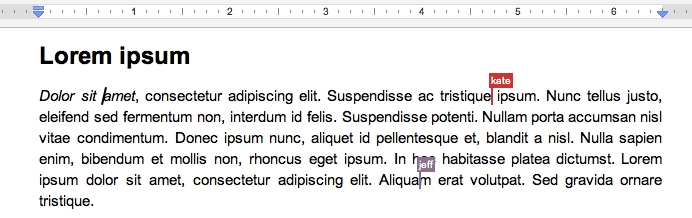

Multiple users editing in the same paragraph
A new layout engine
By far the most difficult thing the editor does is figure out where to draw text. For this, we built a new layout engine. Here’s an example of how the new engine works: say you type the letter ‘a’. We notice you pressed the ‘a’ key and respond by drawing a single ‘a’ off-screen. We then measure the width and height of that ‘a’, combine those measurements with the x and y position of your cursor, and place the ‘a’ at the correct spot on the screen. If you’re in the middle of a word, we push the characters after your cursor over. If you’re at the end of a line, the editor moves your word to the next line and pushes any overflow to the lines after it.
Tab stops and other basic features are impossible to support if you’re using the browser’s HTML layout engine for your text. That’s why we wrote our own engine: once we tell our layout engine how to draw a feature, we don’t have to worry about which features browsers support.
The formatting in this basic menu couldn’t be supported without writing a new layout engine
What I’ve just described is pretty standard architecture for a desktop word processor. But the new Google Docs isn’t just an online version of existing desktop software: it’s designed specifically for character-by-character real time collaboration. That kind of collaboration is only possible because we built the editor around a technology called operational transformation. It’s what lets multiple people edit the same area of a document at the same time without needing to wait for the server to say a particular edit is okay.
Building an extensible, fully collaborative online word processor required rewriting every part of the document editor from scratch. We’re still adding more features and polish before turning it on for everyone, but for an early peek, you can opt-in by visiting the Editing tab in the Google Docs settings.
